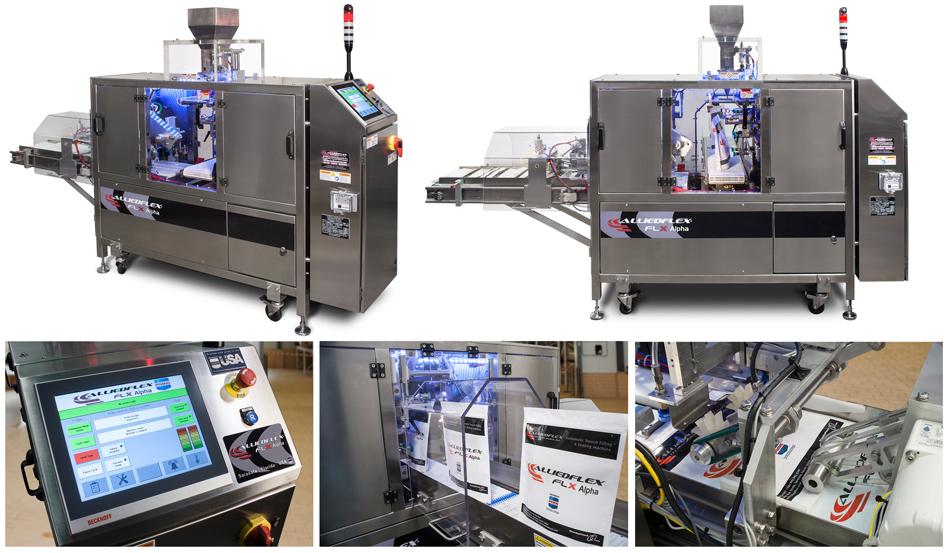

Premade Pouch Filling and Sealing

• Compact, Economical and Simple to Operate;
• Corrosion Resistant Washdown IP65 Standard;
• UL Approved NEMA 4X Stainless Steel Cabinet with Integral Operator Interface;
• Allen Bradley PLC, Allen Bradley Electrical Components 12” Color Allen-
• Bradley Panelview Touchscreen;
  • HMI Operator Interface with Production Features;
  • Can now be used to fill Quad seal Pouches and can accommodate either a linear scale or auger filler depending upon the product application.
  • The FLX Alpha fills 10 – 12 pouches per minute depending upon fill volume and package size.
  • The product settling feature helps to settle the product and flattens the bottom of the pouch.
  • A pouch stack feeder or infeed conveyor option is available for increased automation and productivity.
  • Numerous options available including ultrasonic sealing, gas flush, ink jet printer, remote control station, bottom up fill, dust extraction, static elimination, metal detection, and much more.

The NP-3II by American-Newlong is a hand held, portable bag closer specifically designed for geotextile fabrics. The double thread chain stitch provides increased strength and very tight closure, while the automatic thread cutting feature provides additional convenience to the user. It is designed for continuous, high speed use, and the steel cam with no plastic arms will ensure years of industrial, trouble free operation. The optional spring balancer support is recommended for applications where the machine will be used frequently in order to protect the machine as well as the operator.
Features:

• Operational speed is 1,350 +/- 150 rpm
• Shock resistant isolation handle.
• Automatic oiling system that applies lubrication to moving components
• 8.5 mm stitch length.
• Weighs 6.5 kg including thread spools.
• Choice of 60W or 65W, single phase drive motor.

Options:

• Overhead suspended spring balancer support.
• Tape binding attachment

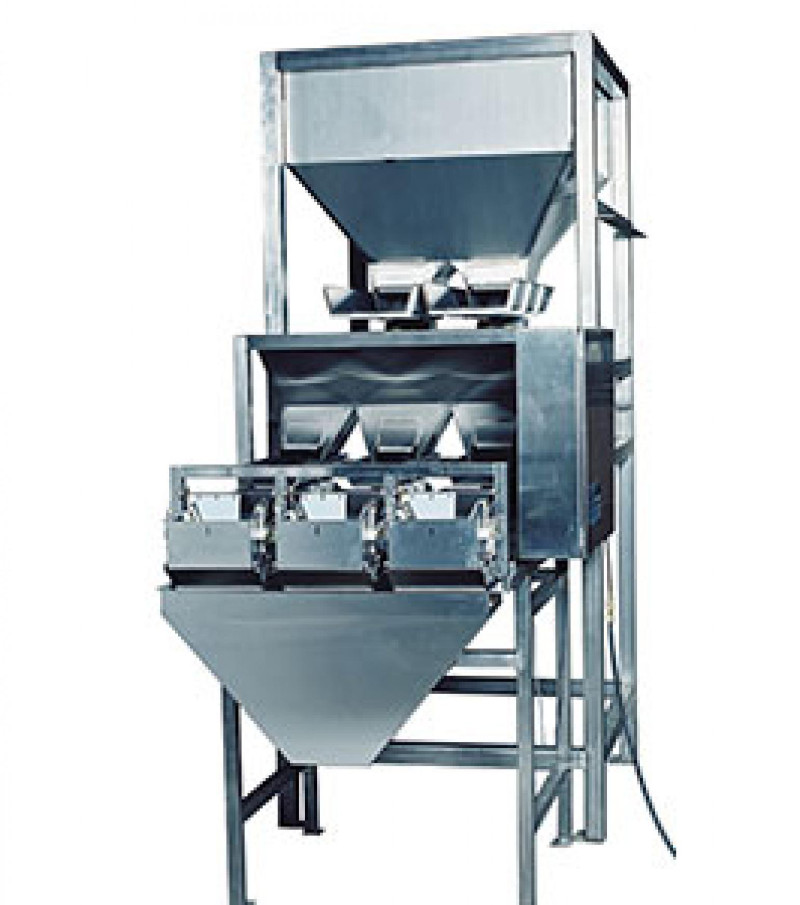

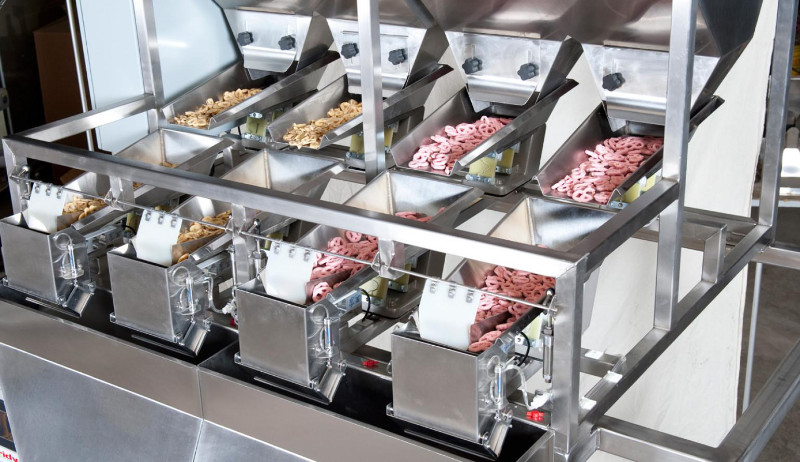

Tridyne Process Systems are ideal for packaging a variety of free-flowing, dry products such as coffee, pet food, human food, hardware, vitamins, and much more. Tridyne systems are uniquely expandable, so packagers can add automation equipment as demand increases.

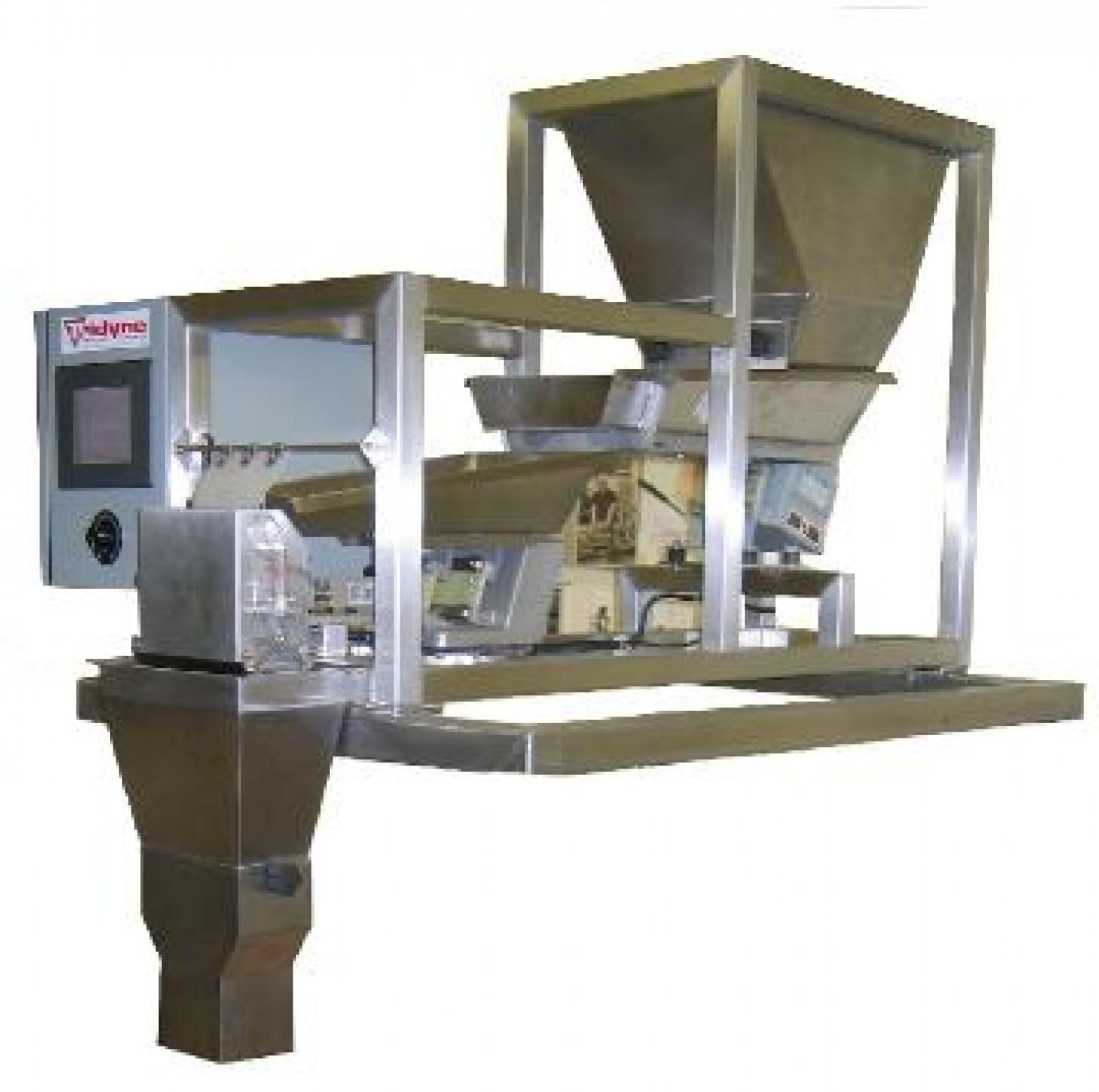

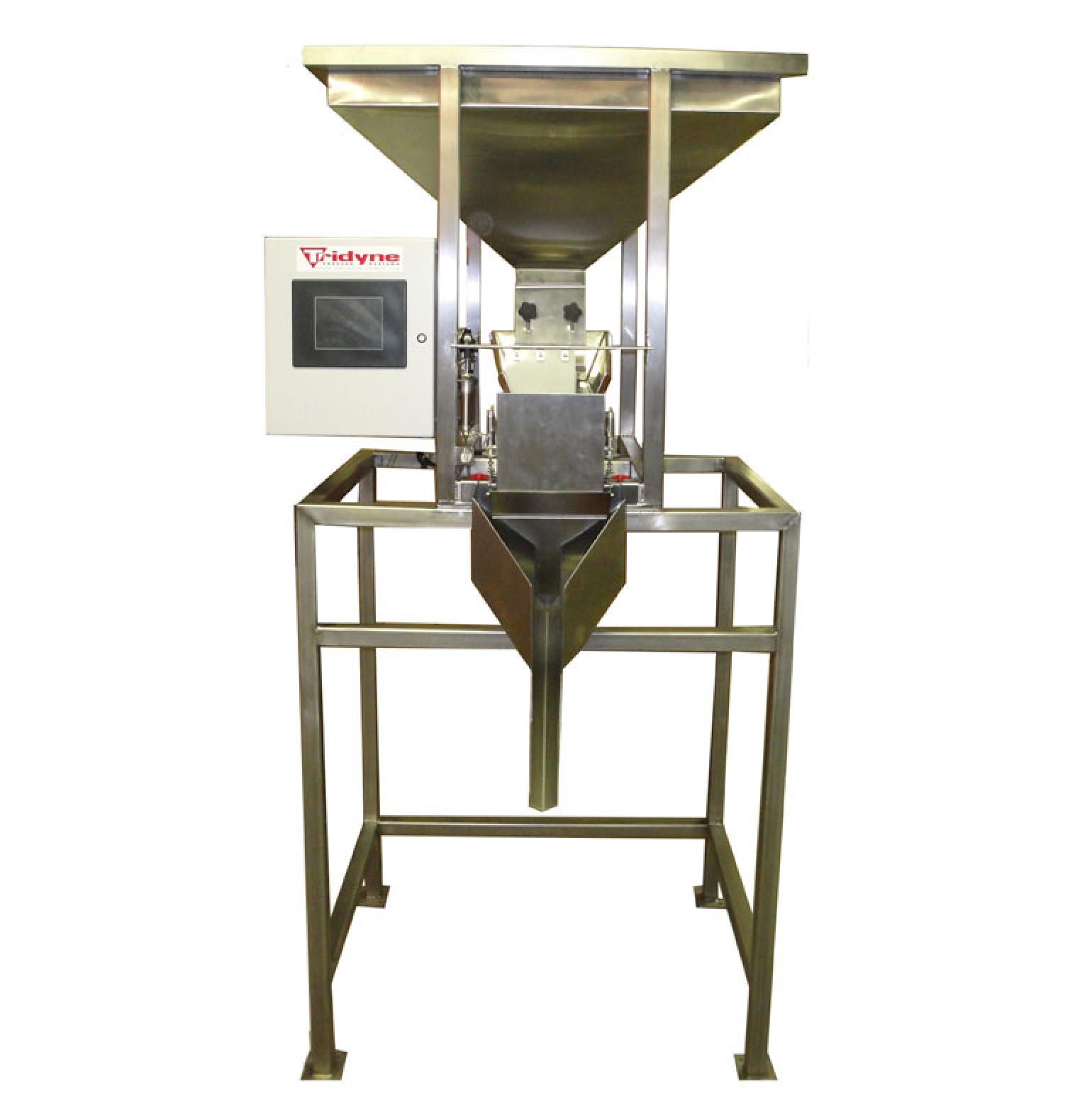

Tridyne F Series Filling Systems

The Tridyne F Series filling systems are customisable assemblies featuring vibratory feeders that can be operated manually or automatically. With a range of sizes and features for packaging into bags, pouches, jars, bins, boxes and various other containers from up to 20 lbs, the F series provides reliable and accurate weighing and filling for regular or irregular particle sized products.

F-Series Typical Specifications

• Capacities up to 5 lbs on smaller units and from 5 lbs to 20 lbs on larger systems
• Speeds up to 20 dumps per minute
• Requires power and compressed air
• Stainless steel construction
• Accuracy of 0.5% of system capacity
• LDC display with integral touch screen

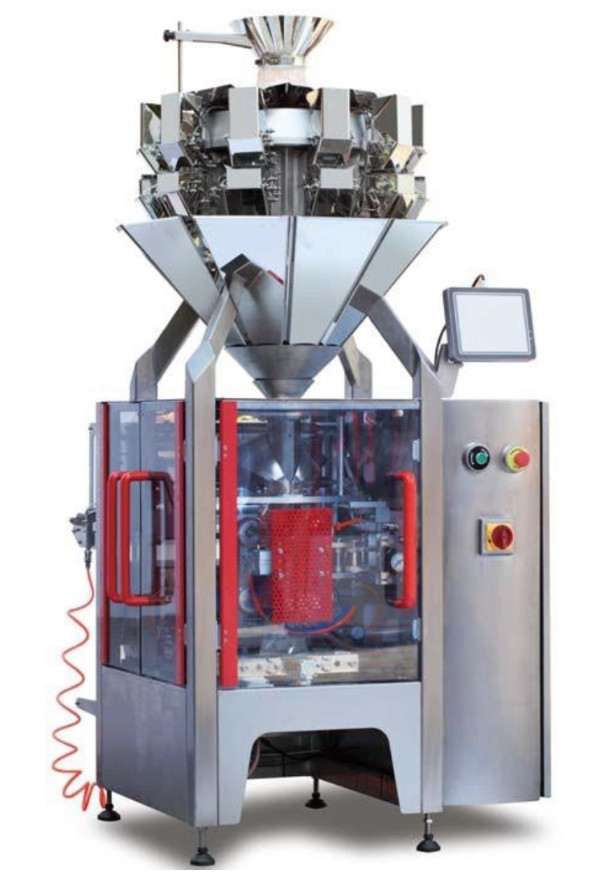

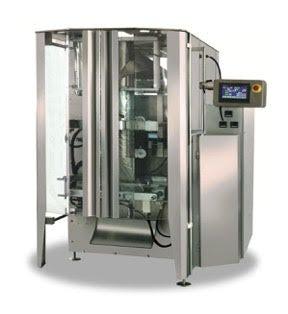

BPI Packaging Equipment design and manufacture customizable filling systems for small pouches and various other small containers such as jars or viles. Their pre-made pouch filling bagger and conveyors are ideal for handling various products from fruit/nuts, candy, chips, powders and much more.

The multi-head weighers produced by BPI feature a number of technical advantages including:

• 304 stainless steel construction,
• Automatic frequency vibration control,
• Small footprint and low height requirements,
• High accuracy and speeds,
• User friendly HMI color touch screen,
• Live display of amplitude and weight readings,
• Self-diagnostics alerts,
• Electric photo eye film registration,
• Central load cell replaced traditional photocell,
• Multiple dumps for bulk weighing,
• Stagger dump for large unit applications,
• Off the shelf components on most wear parts,
• And many more.

The BPI filling and handling equipment can be customized with a huge array of options to suit your production including the following.

• Ethernet remote diagnostics
• Dimpled contact surfaces
• Powder flow control head
• Integrated vibratory infeeder
• Mezzanine,
• Gas Flush assembly,
• Hot stamp or thermo transfer printer,

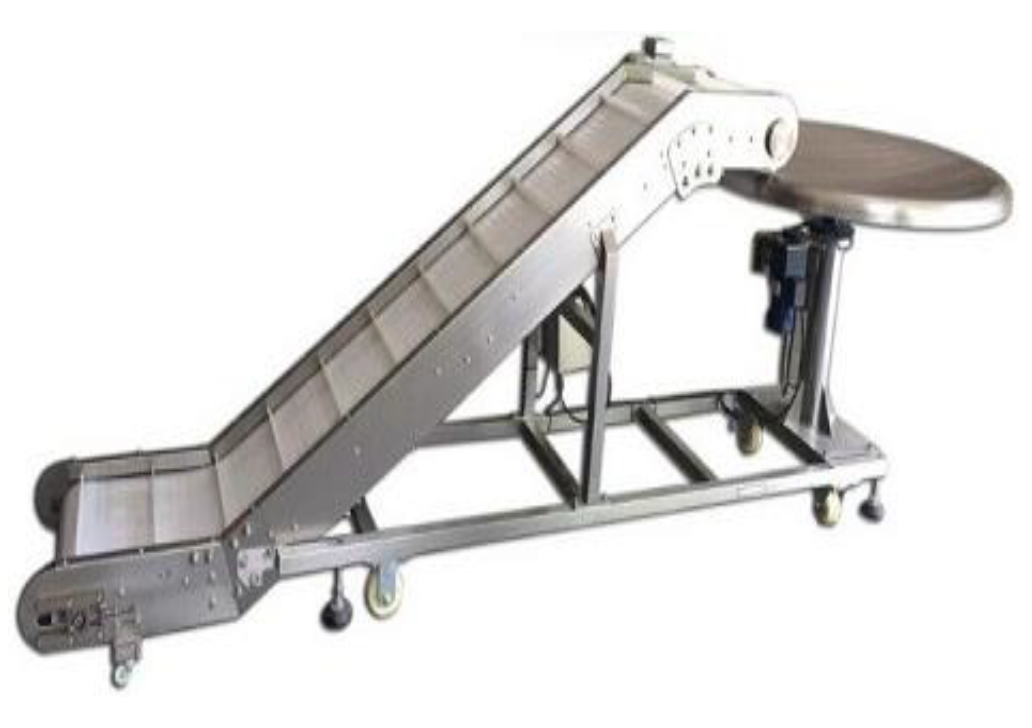

• Adjustable pack-off systems with variable speed control,

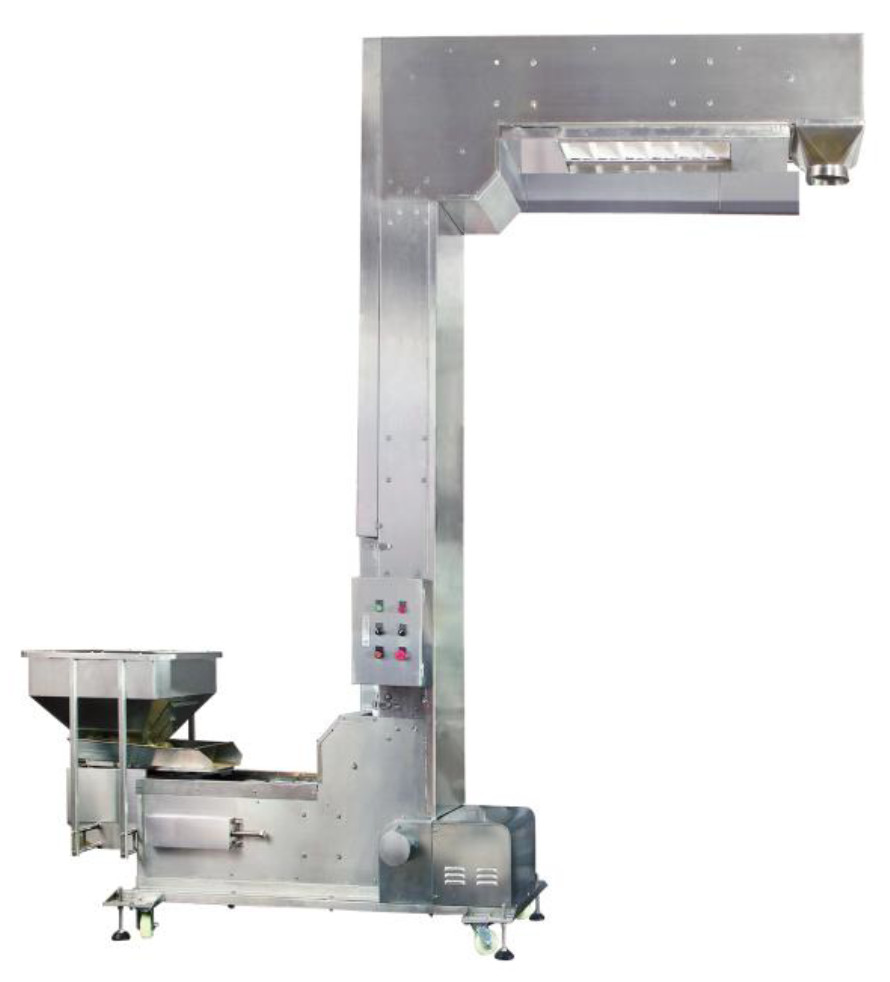

• Customizable enclosed bucket conveyors with variable speed control,
• and much more.
